This manual now includes the 2026-06-27 production-deployment addendum: backend, CMS, and web are live on GCP Cloud Run run.app with Cloud SQL PG17, Upstash Valkey TLS, Secret Manager, and declarative Terraform IaC. Live shared-table RLS has also been provisioned on Cloud SQL and wired into the backend. The screenshots below are still the existing 2026-06-16 local visual captures plus the 2026-06-21 governed payment screenshot; this pass adds deployment status, not fresh production visual proof.
The platform now has a managed production deployment path: GCP Cloud Run for backend, CMS, and web; Cloud SQL PG17 via Auth-Proxy unix socket; Upstash Valkey over TLS; Google Secret Manager; and Cloud Run domain mappings for api, www, and admin. This manual update records the deployment state and operator boundary; it does not replace the existing local/manual screenshots.
Backend boots in prd, GraphQL returned HTTP 200, and Cloud SQL + Upstash connections were observed. CMS and web are healthy on run.app. Terraform in infra/terraform/envs/gcp-cloudrun/ is the declarative authority; the live backend was imported into a 0-destroy reconcile.
The live Cloud SQL database now has cms_tenant_app as a non-superuser app role, ENABLE+FORCE RLS on 41 tables, and verify-rls PASS. Backend env/secrets now wire SCHEMA_TIER_APP_USER / password through Secret Manager.
Google-managed certificates for api, www, and admin are still provisioning. Until they finish, this manual does not claim end-to-end browser proof on custom domains or public-domain /mcp cross-tenant proof.
Worker runtime, AGE/GraphRAG, multi-region, and UAT sign-off remain outside this pass. Existing screenshots stay predecessor/local evidence, except the payment donor screenshot which keeps its governed browser-full-integration tier.
A run of backend/test-tier prod-readiness lanes shipped as PRs against dev (#107/#108/#110/#111/#112/#113), hardening the platform's failure behavior with executable chaos & fail-closed coverage and one real wire-up fix. These change backend behavior, not operator screens, so the screenshots below still stand; this is a spec/PR-cited content note, not a fresh-runtime regen. For operators the practical effect is: ingest/payment webhooks dedup safely under concurrent floods, asset upload & AI generation fail closed (no orphan records, no leaked DB connections), and AI-quota enforcement is proven on the real transaction path.
IngestMessage for the same provider message → exactly one draft + one log persist; the rest dedup with no orphan. Closes the last adjacent-dependency chaos gap.A backend/config-tier hardening lane shipped as PR #71 against dev, promoted from a repo-wide mock/stub/false-green audit (prod-readiness-wireup-hardening). It changes security/wire-up behavior, not operator screens, so the screenshots below still stand; this is a spec/PR-cited content note, not a fresh-runtime regen.
require/verify-ca/verify-full) when ENV=production, matching the platform-DB validation. Dev/local behavior unchanged.NEXT_PUBLIC_*_API_KEY (which would ship secrets in the browser bundle); generation routes through the backend BYOK path, and the admin endpoint fallback now fails closed on Vercel-style production markers.chaos/resilience tests prove the platform degrades gracefully and bounded, never hangs: connection-pool exhaustion stays within its limit and recovers; a transient tenant-database outage is not cached and routing self-heals when the DB returns; and a hung AI provider fails with a bounded, typed error (finite client timeout).A generic, site-scoped payment / donation / e-commerce module shipped as PR #86 against dev (payment-plugin). Donation is one purpose preset of a generic Payment* core. Below is the live donor page rendered from DB-driven page data against the real backend.

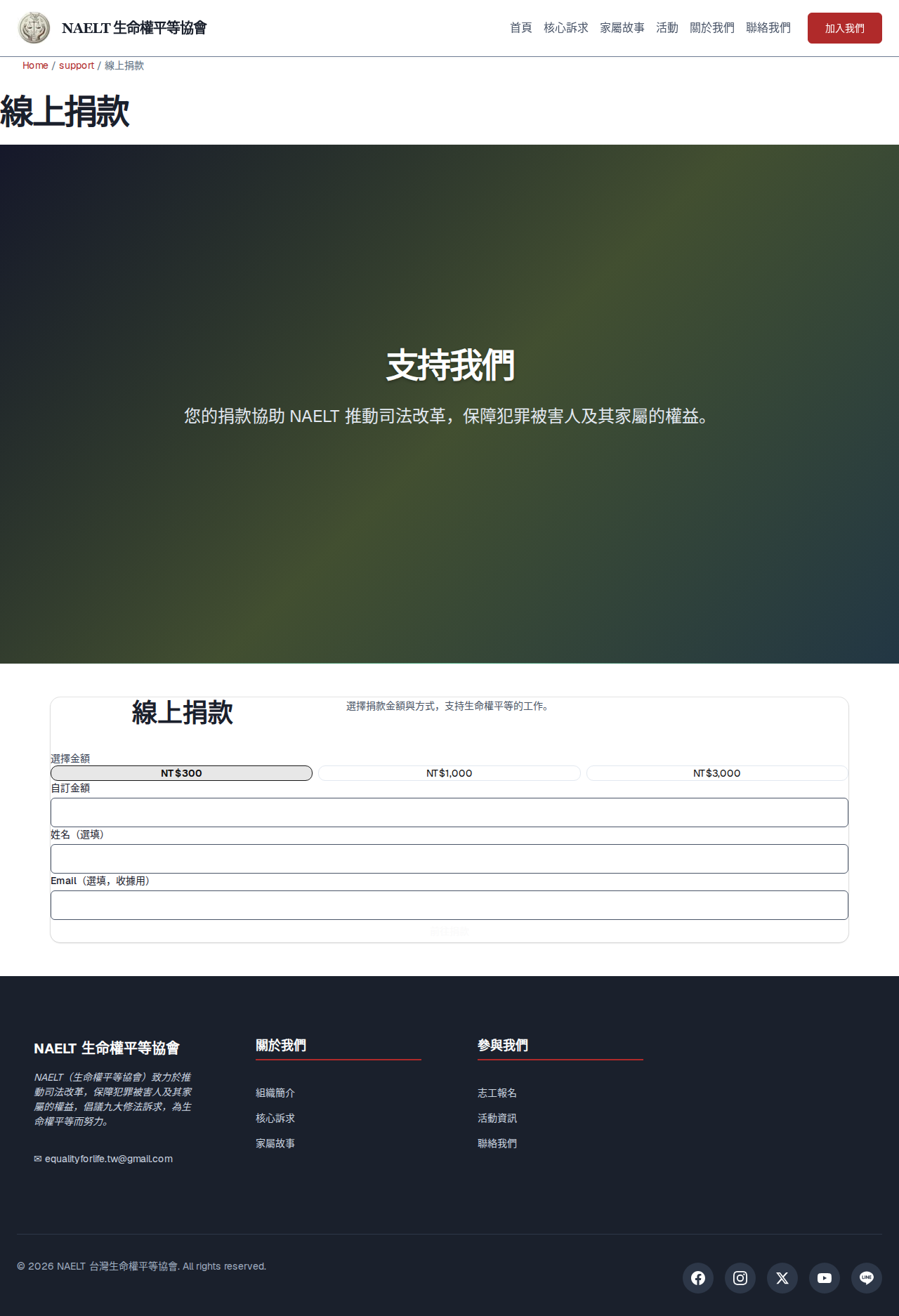

PaymentForm (DB-driven)The seeded NAELT /site/naelt/support/donate page renders the generic PaymentForm (the donation-form manifest preset) entirely from DB page data: preset amounts, custom amount, payer fields, and a provider-driven submit (Stripe redirect / 藍新金流 NewebPay form-post). No secrets touch the browser — the server resolves the site's BYOK provider by siteID.
The CMS Settings page gains a Donation & Payment tab (provider catalog, guided setup wizard, masked BYOK secret rotate, donation/order list + ezPay 電子發票 status) and a Products & Services tab (catalog CRUD, SKU variations, Udemy-style digital-content authoring: public preview vs paid). Admin GraphQL is RBAC-gated (site.payment.* / site.catalog.*).
Capability 8 — Payments / Donations / E-commerce. Generic public createPaymentCheckout(purpose) + provider-registry drivers (Stripe Checkout one-time + subscription; 藍新金流 NewebPay MPG 2.0 + 定期定額) + ezPay 電子發票 auto-issue + BYOK per-site secrets + product/service catalog + digital entitlements (auto-grant on paid, fail-closed access); the donation-form page-builder component renders the generic PaymentForm; one mount switch PAYMENT_MODULE_ENABLED. Authority: .agents/specs/payment-plugin/review.md, PR #86.
Detailed, contract-grounded worked examples for the platform's authoring & runtime capabilities, using the showcase tenant as the canonical example (its home + a /components gallery page exercise all 11 page-builder components). Evidence tier: illustrative worked examples grounded in real GraphQL/route/manifest contracts — backend/CLI-lane evidence (commands & payloads), not live-demo screenshots; claim-cap per capability below. Authority for readiness remains each spec's review.md.
Pages are arrays of sections; each section names a component from the component-manifest SSOT (componentManifests GraphQL ← backend/internal/componentmanifest/manifests.json) plus its props. The CMS Pages builder edits sections and saves the whole section array via updatePageSections(id, sections: [JSON!]!). Public routes are force-dynamic, so adding an already-registered component to a page is DB-data-only — no image rebuild.
# Showcase home is built from these manifest-backed sections (backend/seeds/showcase-pages.json):
HeroSection · FeatureGrid · ContentList · EventSection · ImpactStats · CTASection
# The /components gallery page additionally demonstrates:
ResourceGrid · ContentSection · EnhancedContentList · EnhancedEventCalendar
# Save an edited page (full-array replace) — from the CMS page builder:
mutation { updatePageSections(id: "<pageId>", sections: [ /* the full ordered section array */ ]) { id } }Generation runs server-side through generateAIContent(prompt, providerId); the CMS never holds provider secrets in the browser (see the 2026-06-18 security hardening). Each site declares its own provider profiles (Google Vertex/Gemini, AWS Bedrock, Azure AI/OpenAI, OpenAI, Anthropic, TensorZero, OpenCode) with BYOK secret metadata + a usage ledger.
mutation { generateAIContent(prompt: "Draft a launch blog post about our new studio", providerId: "") { content model tokensUsed } }
# providerId "" = use the site's default profile; the backend resolves the BYOK key, never the browser.Content is modeled by content types and moves through a draft → published → unpublished status lifecycle (status-scoped listing). Public forms submit into a governed submission workflow (submit → approve/reject) reviewed in the CMS. Every operation is permission-checked (e.g. site.content.*, site.social.read/manage).
# Public site form section (showcase /contact) → backend-issued submissionId → CMS review queue (approve/reject).
# Content list/detail pages render DB content by contentType (article/event) via ContentList/ContentSection.Each site exposes agent-friendly read surfaces: a Model Context Protocol endpoint at /mcp (list/get/search contents), an MCP discovery doc at /.well-known/mcp.json, and per-site + platform llms.txt. Non-VIP tenants' reads are confined by D2 Row-Level Security (routed non-superuser role) when SCHEMA_TIER_APP_USER is enabled.
# Discover + read a site over MCP (HTTP/JSON-RPC):
GET /.well-known/mcp.json # server description
POST /mcp → tools: list_contents(site) · get_content(site, slug) · search_contents(site)
GET /site/showcase/llms.txt # agent-friendly site summarySites define declarative skill/prompt templates (internal/skilltmpl; seeds skills-platform.json/skills-naelt.json) used to convert/optimize content — no script/code execution, no sandbox. Templates are versioned and managed via upsertSkillTemplate (create ⇒ v1; update ⇒ version bump; published templates immutable; cross-site fail-closed; @requirePermission("site.social.manage")).
mutation { upsertSkillTemplate(input: { id: 0, kind: "post-conversion", name: "LINE→blog", body: "..." }) { id version kind } }
# id:0 → creates version 1; id>0 → updates + bumps version.The A2UI agent (backend/internal/adk) authors page-builder sections from the same component-manifest catalog, gated by a manifest-validation step + a design-contract no-invented-facts honesty boundary + an untrusted-content boundary. It proposes manifest-valid sections that you save through the normal updatePageSections path — so agent output is held to the exact same contract as human page-builder edits.
# A2UI flow: catalog prompt (componentManifests) → agent proposes sections → manifest validation gate
# → design-contract honesty check → human review → updatePageSections(save).A platform-agnostic, integration-first pipeline (messaging-ingest-social-publishing): inbound messages arrive on a single canonical webhook, are normalized, converted to a post draft via the site's AI provider + a declarative skill template, queued for review, then published through pluggable publisher drivers. Site-scoped RBAC throughout (site.social.read/manage/publish/secret); secrets are site-BYOK.
# 1) INGEST — providers self-register; one canonical inbound route per platform/site:
POST /api/webhooks/messaging/{platform}/{site} # e.g. line, telegram, whatsapp (signature-verified, fail-closed)
# 2) CONVERT — normalized message → post draft via SiteAIProviderResolver + per-site skill template (no sandbox).
# 3) REVIEW — draft sits in the CMS "Messaging & Social" review queue:
mutation { updatePostDraft(input: { id: "<draftId>", blocks: [...], metadata: {...} }) { id status version } } # published drafts are immutable
# 4) PUBLISH — through a pluggable SocialPublisher driver (e.g. Facebook Graph):
mutation { publishPostDraft(id: "<draftId>") { id status } } # @requirePermission("site.social.publish")Two backend/API-tier lanes shipped as PRs against dev after the 2026-06-16 runtime capture below. They add backend behavior, not new operator screens, so the screenshots on this page still stand; this is a spec/PR-cited content note, not a fresh-runtime regen.
cms_showcase). SpawnSite now creates the physical cms_<slug> database and migrates the schema into it for VIP sites; a non-VIP (SCHEMA/D2) site stays record-only by design. Fail-closed: if provisioning fails the site record is rolled back, so no dangling registry entry is left.updatePostDraft (edit a draft's blocks/metadata before publish — a published post is immutable) and upsertSkillTemplate (create, or update + version-bump, a skill template) GraphQL operations are now implemented, both gated on the site.social.manage permission. The in-CMS editor UI for these is a tracked follow-up.Use the tracked seed/demo data first. Do not invent one-off manual examples.
backend/seeds/{platform,naelt,showcase,tenant-demo}-*.json provide pages, content, submission types, themes, navigation, and skills. tenant-demo carries "tenancyTier":"schema" so it seeds as a non-VIP site. Seed with python scripts/ops.py db seed {platform|naelt|showcase|tenant-demo}.
scripts/seed_e2e_data.py / scripts/seed_e2e_data.sql document canonical roles and sample tenants for repeatable test/demo flows (8 runtime users: platform_admin, site_admin, editor, viewer, MFA, two tenant admins). Passwords marked MOCK-DEV-ONLY-* are never production credentials.
Current local screenshots and CLI transcripts live in docs/manual/assets/ as *-manual-2026-06-16.png and *-cli-2026-06-16.txt; the 2026-06-27 update adds deployment/RLS status without new screenshots.
Follow these routes on the local runtime unless a production target has been explicitly named and provisioned.

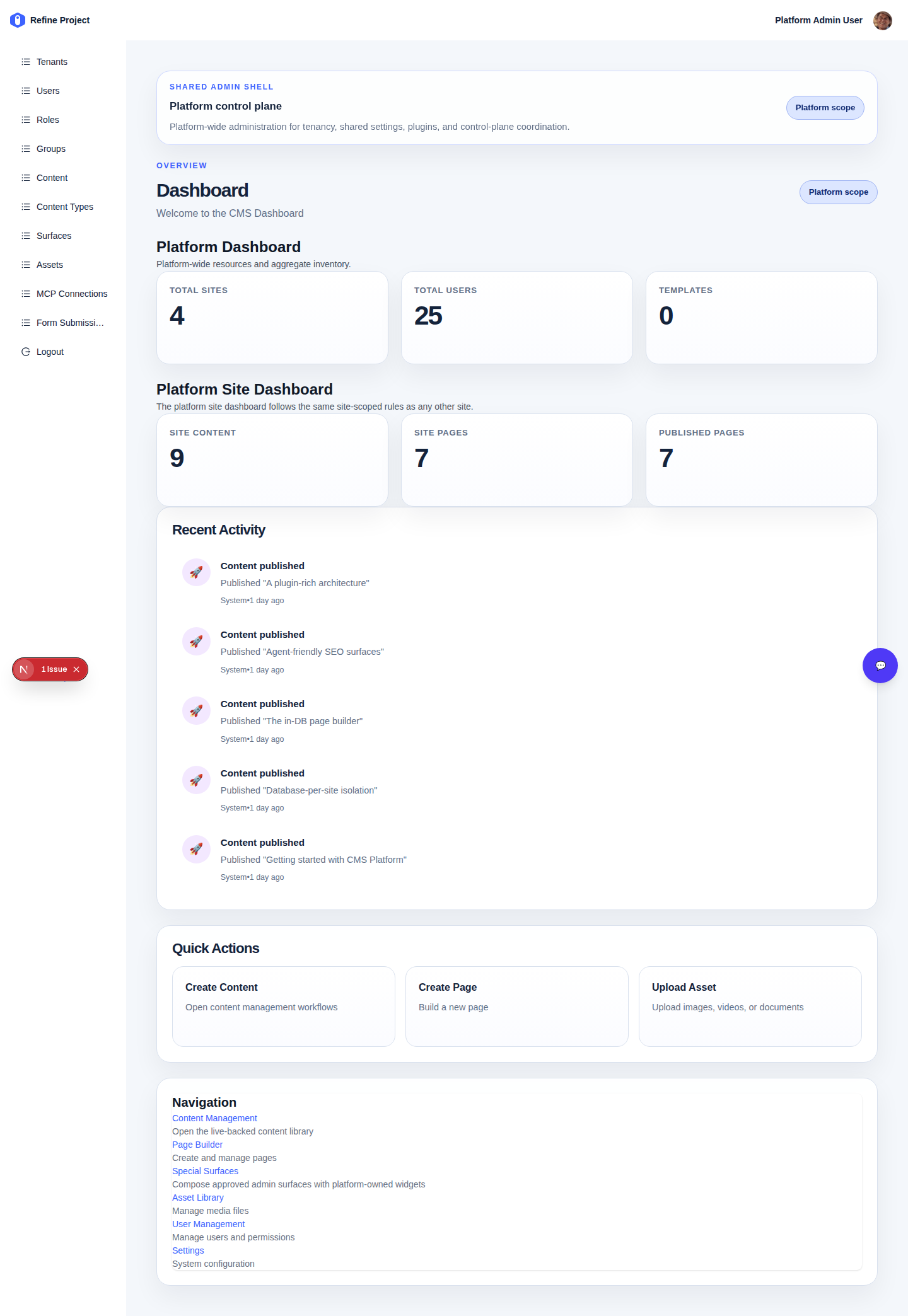

Open http://localhost:23000, authenticate through the configured flow, and verify dashboard scope. Platform admins see the platform control-plane shell with platform-site metrics (now 4 total sites), Recent Activity, and Quick Actions; site admins see a site-scoped workspace. Scope authority comes from the authenticated role and current site/tenant context, not the visual cues.

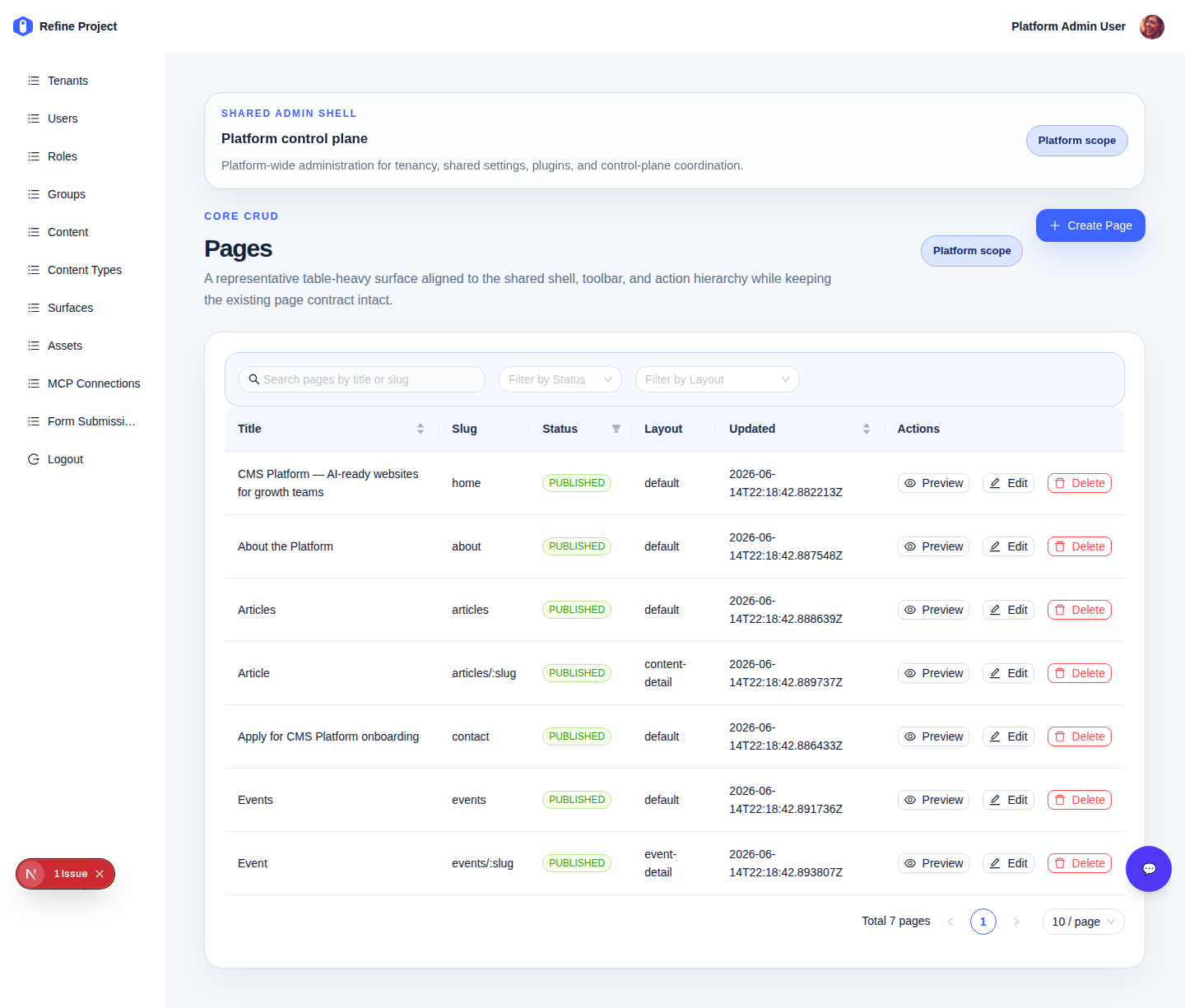

Open http://localhost:23000/pages. The list is the entry to the manifest-driven page builder: per-page Layout (default / content-detail / event-detail), Status, search-by-title/slug, status and layout filters, and Preview/Edit/Delete per row. Adding an already-registered platform component to a page is a DB-data change — no frontend rebuild.

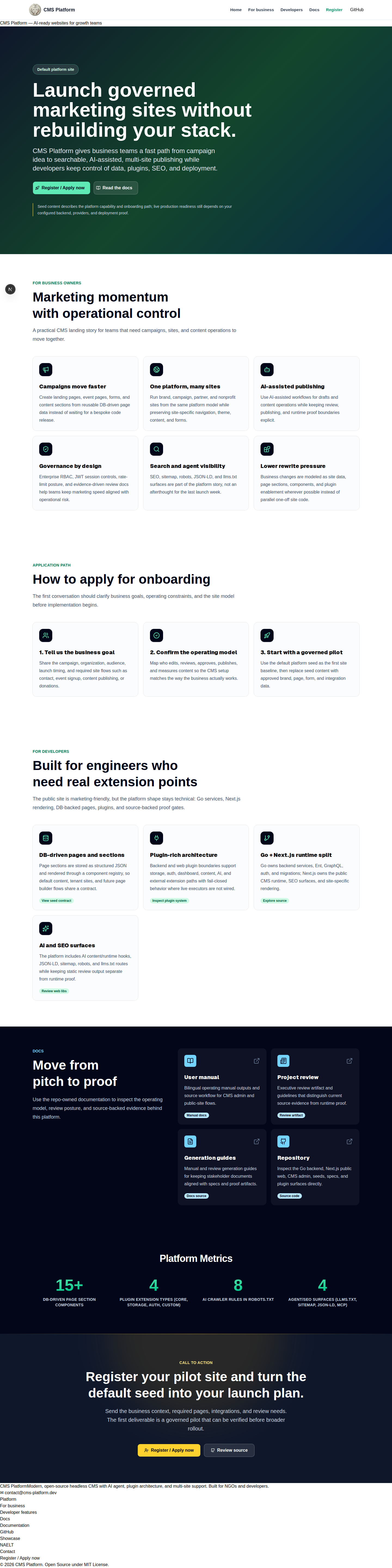

Open http://localhost:23001/site/platform. The seed-backed marketing surface renders on the shadcn/Tailwind-v4 foundation: gradient hero, feature grids, onboarding steps, platform metrics, and CTA sections.

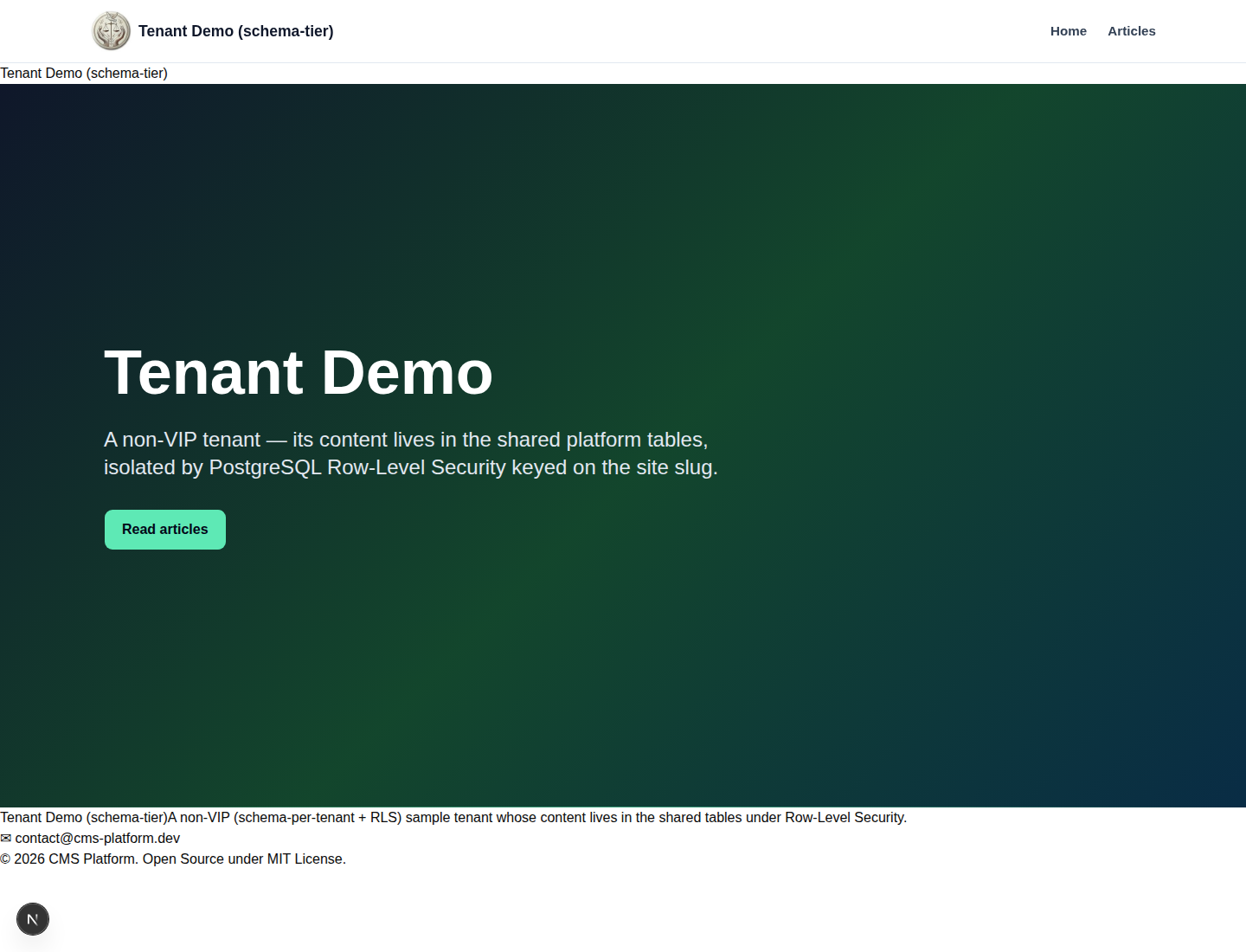

tenant-demo (SCHEMA tier · D2 shared-table RLS) NewOpen http://localhost:23001/site/tenant-demo. This fourth seeded site is non-VIP: its content lives in the shared platform tables and is isolated by PostgreSQL Row-Level Security keyed on the site slug (the "D2" model), rather than in a dedicated database. It renders identically to a VIP site — proving the isolation model is invisible to the end user.

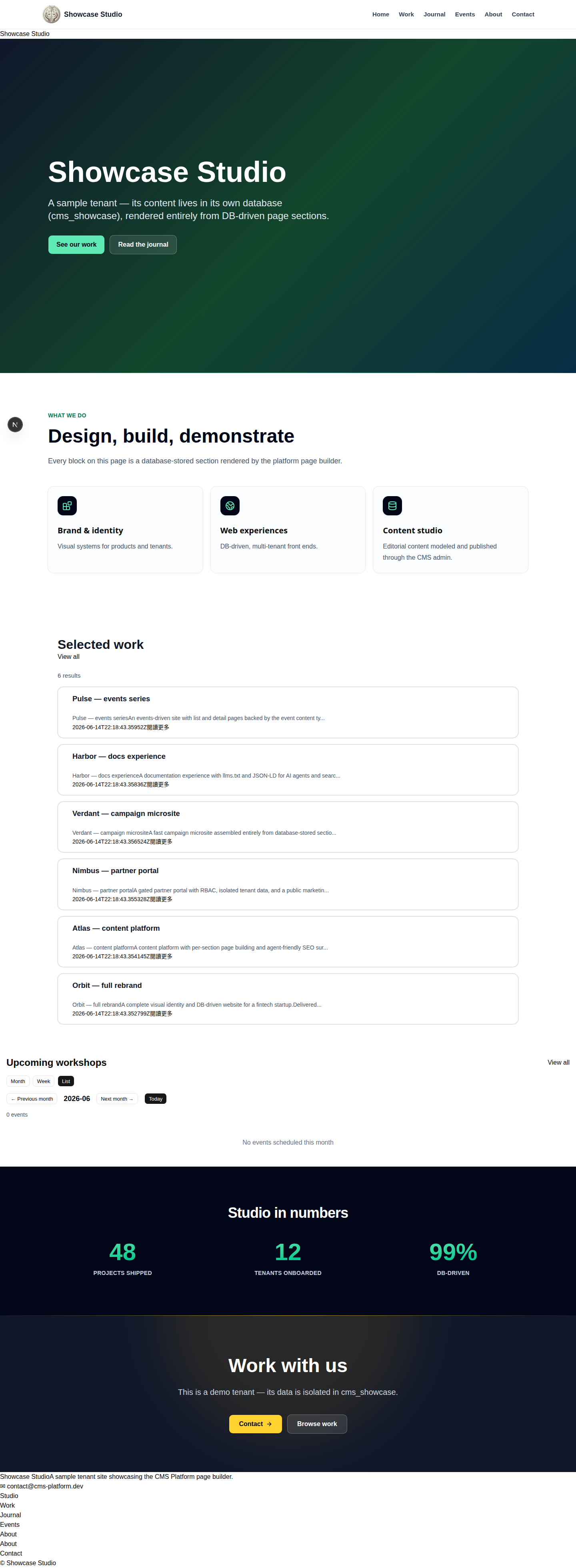

Open http://localhost:23001/site/showcase — "Showcase Studio", a distinct DB-driven demo site proving multi-site delivery from one codebase via site config/theme/page seeds.

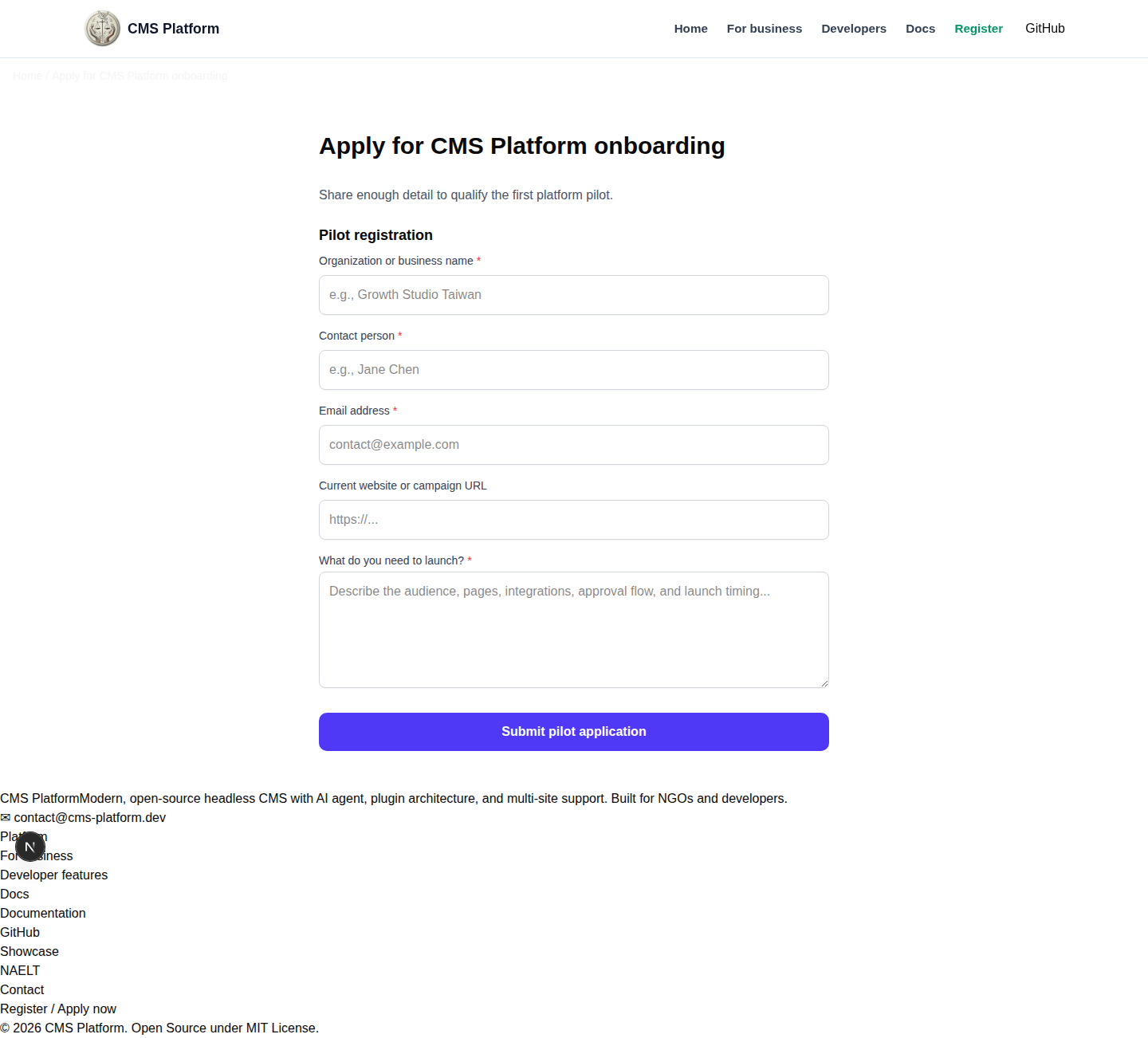

Open http://localhost:23001/site/platform/contact to inspect the platform public submission route.

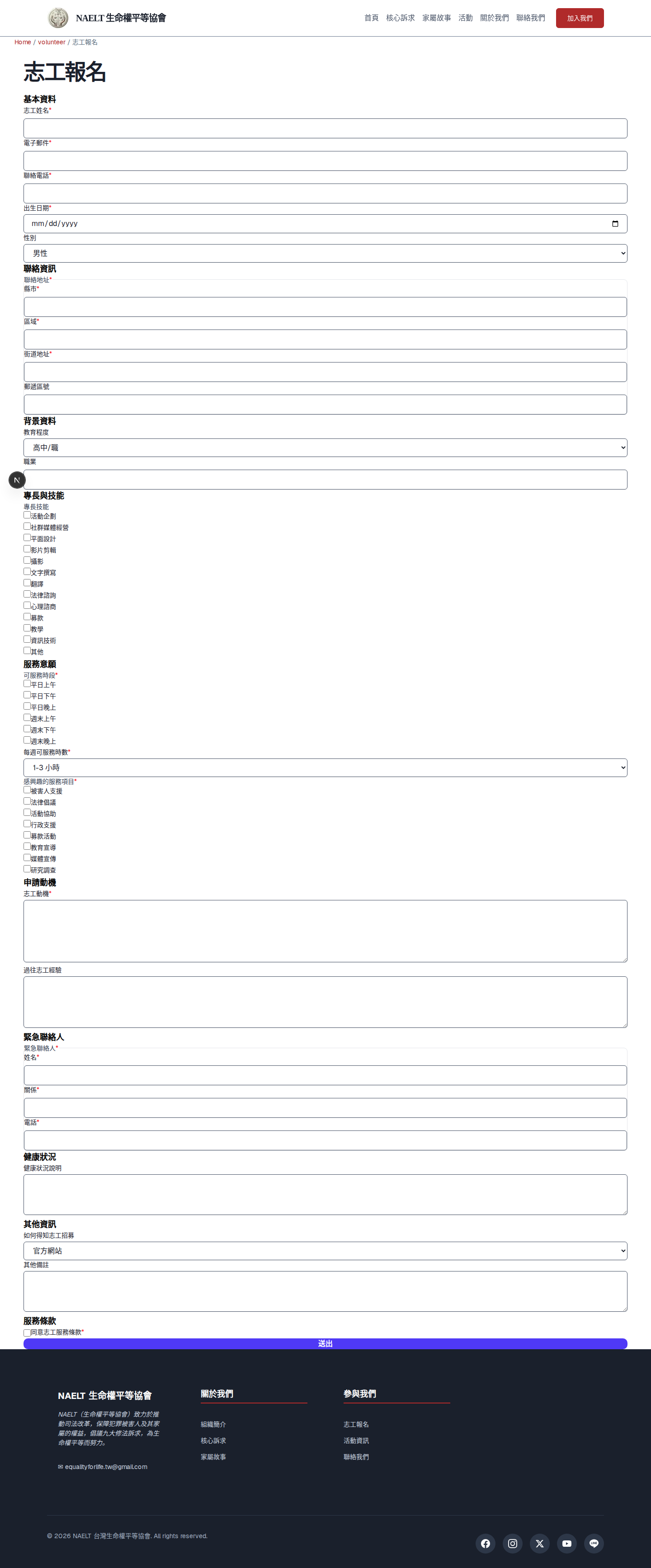

Open http://localhost:23001/site/naelt/volunteer/register. The seeded manifest renders Traditional Chinese field groups (志工報名) and required fields.
The platform decides each site's data-isolation architecture from a single VIP flag: VIP ⇒ database-per-tenant (the site gets its own physical database); non-VIP ⇒ shared-table Row-Level Security (the "D2" model — shared database and schema, isolated by RLS keyed on the site, enforced at runtime via a non-superuser application role). VIP is platform-controlled today.

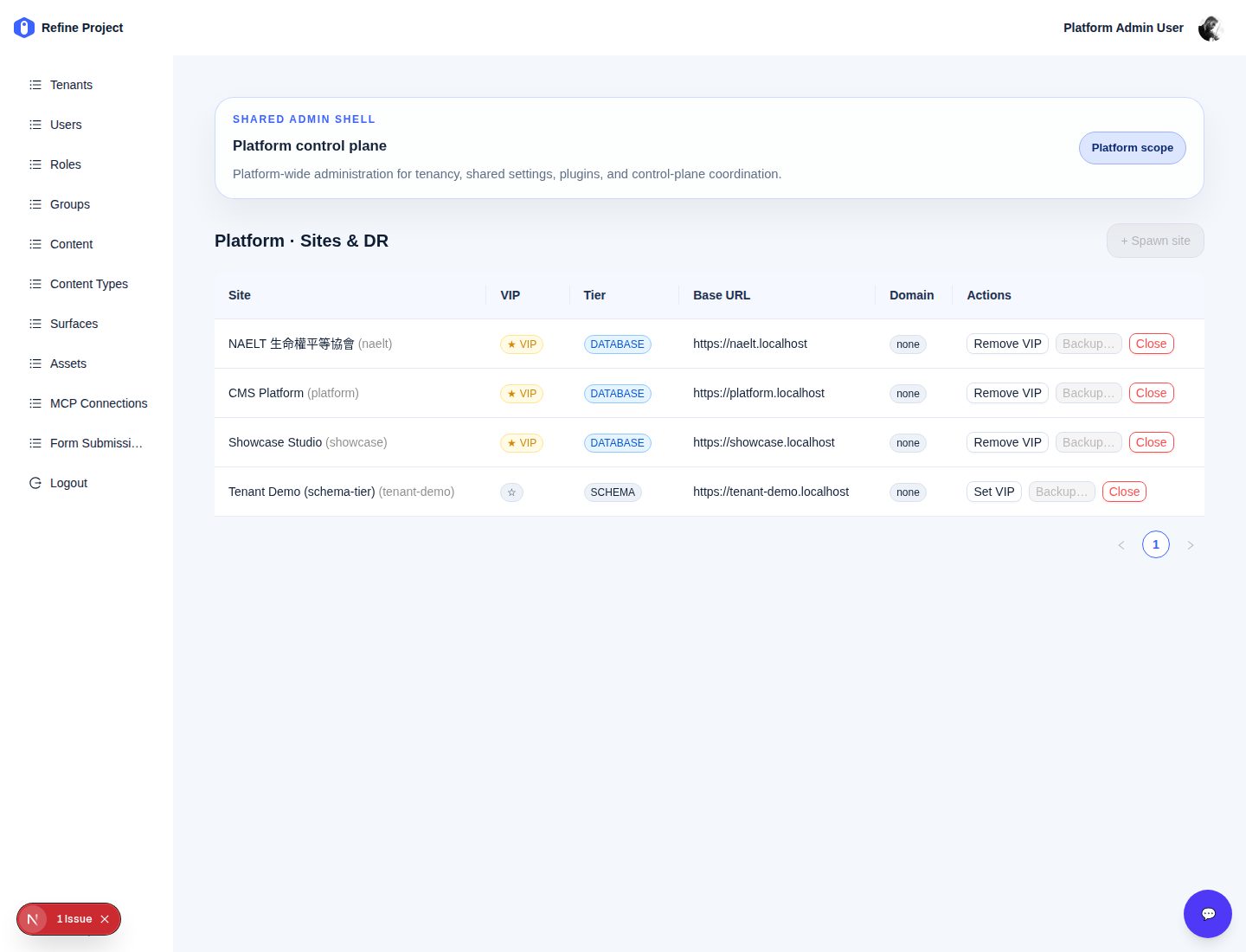

/platform/sites)Platform super-admins open http://localhost:23000/platform/sites to manage every site from one table. Each row shows the site, VIP star, tier (SCHEMA or DATABASE), base URL, and custom-domain verification state. Per-row actions:
pg_dump/restore sequence (provision the target, copy, verify, then drop the source last). Note tenant-demo shows Set VIP while the three DATABASE sites show Remove VIP.The Spawn site and Backup (configure / run / restore-test) actions render disabled — those operations are not available yet.
/settings/dr)A site/tenant admin opens http://localhost:23000/settings/dr to manage their own site. Tier and VIP are shown read-only (platform-controlled; to change them, contact the platform). The panel also shows the base URL and the custom-domain DNS-TXT verification state, plus a URL-settings form: choose how the site is reached — a subdomain (slug.platform), a path fallback (platform/slug), or an optional custom domain — and save it.
Backend / CLI surface (no browser). Before pointing the non-VIP read path at any PostgreSQL host, you confirm the host can satisfy the D2 model, then run a single idempotent provisioning script. Evidence here is command transcripts, not screenshots.
migrate db-doctorRun against any candidate Postgres to confirm it can run the D2 read path (create a non-superuser app role and have FORCE RLS actually confine it) and whether it has pgvector + Apache AGE for runtime GraphRAG (advisory — their absence does not block D2). db-doctor inspect is read-only; the default mode runs a throwaway role round-trip. Transcript against the governed PG15:
$ migrate db-doctor ℹ️ [INFO] server-version PostgreSQL 15.18 ✅ [PASS] privileged-role-can-create-app-role ✅ [PASS] app-role-is-non-superuser ✅ [PASS] app-role-non-bypassrls ✅ [PASS] force-rls-confines-app-role ⚠️ [WARN] tls NOT using TLS — set sslmode=require for a hosted DB ℹ️ [INFO] max-connections max_connections=100 ⚠️ [WARN] extension:age age NOT available — runtime GraphRAG cannot run here ⚠️ [WARN] extension:vector vector NOT available — runtime GraphRAG cannot run here ✅ HOST OK for the D2 shared-table-RLS read path (advisory WARN items do not block D2).
scripts/provision_schema_tier_rls.pyOne idempotent command provisions the non-superuser app role, seeds the non-VIP site(s), installs the shared-table RLS, and verifies isolation. Preview the exact plan first with --dry-run (prints commands + a secret-redacted DSN, executes nothing):
$ provision_schema_tier_rls.py --dry-run tenant-demo D2 shared-table RLS on host=db.example.com … password=*** sslmode=require | app_role=cms_tenant_app app_password=*** --dry-run: the following idempotent steps WOULD run (nothing executed): ▶ 1/4 provision non-superuser app role: migrate provision-app-role ▶ 2/4 seed schema-tier site 'tenant-demo': migrate migrate tenant-demo ▶ 3/4 install shared-table RLS + grant: migrate rls-rollout-shared ▶ 4/4 verify RLS isolation: migrate verify-rls tenant-demo
The runtime env contract is documented in .env.schema-tier.example; the routed /mcp public read path turns on only when SCHEMA_TIER_APP_USER is set at backend startup (default-off / reversible). After deploy, a post-deploy /mcp cross-tenant UAT smoke (env MCP_UAT_BASE_URL) confirms isolation against the real URL.
These are the exact inputs used for this manual refresh. RTM.md is traceability context only; spec-local reviews and runtime reports remain proof authority.
| Source | How it was used |
|---|---|
.agents/specs/{SPECS,NEXT_STEPS,ISSUE_LOG,RTM}.md | 2026-06-27 rollup — Cloud Run deployment, live Cloud SQL RLS follow-up, and prior D2/manual evidence. RTM is rollup only, not readiness authority. |
.agents/specs/schema-per-tenant-routing-rls/{tasks.md (Slice 8), review.md, adr/ADR-RLS-002-NON-VIP-CANONICAL-D2.md} | The D2 (non-VIP) canonical model + the host-preflight / dry-run / UAT-smoke / transaction-pool-safety deliverables documented in the Host Preflight section. RLS is only enforced when the app connects as a non-superuser role. |
.agents/specs/tenant-lifecycle-dr-admin/{design-cms-ui.md, requirements.md, tasks.md} | DR admin UI shape for the platform Sites & DR table and tenant DR & Domain panel. (No review.md exists for this spec — fell back to the design/requirements/tasks chain, as the guide allows.) |
backend/seeds/{platform,naelt,showcase,tenant-demo}-*.json | Canonical seed/demo/sample data for the 4 seeded sites (the new tenant-demo carries tenancyTier:schema). |
docs/manual/assets/*-2026-06-16.{png,txt} | 9 fresh screenshots + 2 CLI transcripts captured this pass from the running local stack via scripts/capture_manual_2026_06_16.mjs and the migrate CLI. |
docs/MANUAL_GENERATION_GUIDE.md + the review guides | Manual workflow and source-manifest rules (2026-06-27 note added for Cloud Run/RLS addendum, no new screenshots). |
.agents/specs/production-deployment-topology/{review.md,adr/ADR-DEPLOY-003-gcp-cloudrun-cloudsql-cloudflare.md} + infra/terraform/envs/gcp-cloudrun/ | Production deployment authority: Cloud Run runtime live on run.app, Cloud SQL/Upstash connectivity, declarative Terraform IaC, and live shared-table RLS provisioning/wiring claim boundary. |
docs/*FEATURE*.md | No matching files exist in this repo for this pass (manifest fallback to the spec/report chain, as the guide allows). |
Compared against the 2026-06-15 manual pass.
tenant-demo on the SCHEMA (non-VIP) tier, so the DR admin table now shows the SCHEMA badge and the Set VIP (vs Remove VIP) distinction with real data, and the non-VIP D2 public site renders at /site/tenant-demo.migrate db-doctor capability probe (incl. pgvector/AGE detection) and the provision_schema_tier_rls.py --dry-run plan are now shown with real CLI transcripts.scripts/ops.py db seed invoked the old single-file go run cmd/migrate/main.go (broken after the migrate package was split into multiple files); corrected to go run ./cmd/migrate so seeding works again./site/tenant-demo (6 routes)./settings/dr panel: all four seeded sites set domain to none, so the custom-domain pending/Verify state is still not seed-exercised, and the per-tenant DR & Domain panel is not captured this pass. Add a site with a pending custom-domain challenge.db-doctor shows them as advisory WARN; a host with both installed is not captured.target_id remains undecided; backend host is not provisioned; DNS/TLS/deployment binding is absent for app/API hostnames.
Current screenshots are local runtime captures; custom-domain browser proof, CDN/cache invalidation, crawler breadth, and UAT remain separate despite Cloud Run being live.
The live Cloud SQL RLS layer is provisioned and wired, but custom-domain /mcp cross-tenant proof still waits for the API certificate and at least two non-VIP tenants.
The tenant-lifecycle DR admin UI is proven at mocked-GraphQL component tier + this hybrid backend-backed capture — not a full backend-backed browser e2e.
CMS dashboard / page-builder / DR-admin captures use auth-API cookie injection; hybrid evidence, not full browser-login.
The page-builder screenshot shows the seeded Pages surface; live page-save/publish and A2UI agent apply are separate workflow proofs not captured here.
